Special Offer US $2126.21 3 AXIS metal cnc engraving machine 8060 wood router 1.5KW spindle PCB drilling with limit switch 60

by my machine is BIG on September 21, 2015 in cnc, machine, router

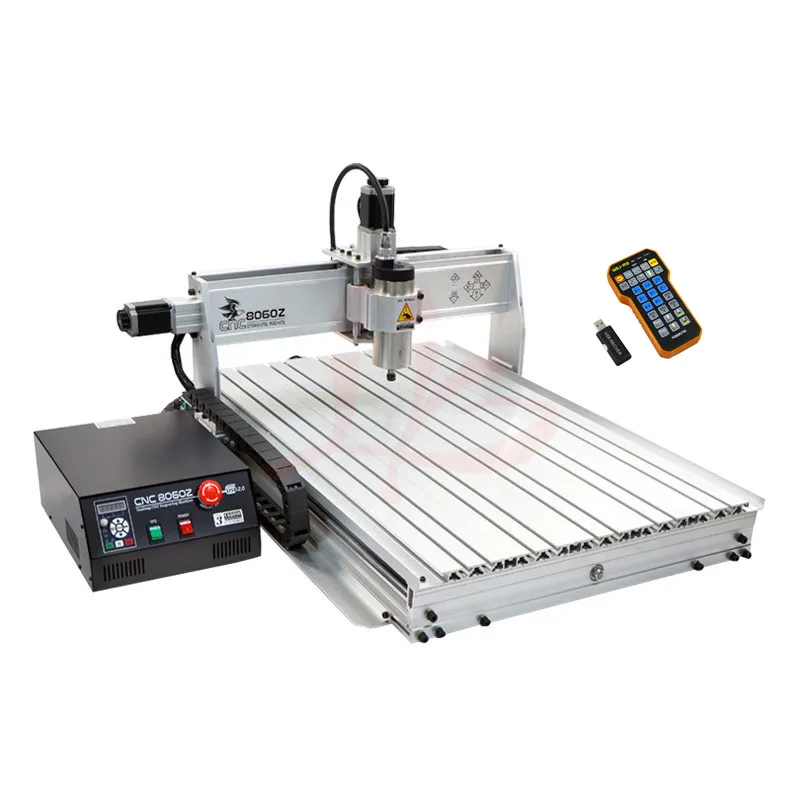

3 AXIS metal cnc engraving machine 8060 wood router 1.5KW spindle PCB drilling with limit switch 60

[32907876683] 1500W spindle 3axis CNC 8060 ER11 collet USB port Router Engraving Drilling and Milling Machine Introduction The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes. The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home. Model and Technical Parameters MODEL 8060Z-1.5KW Attribute 3axis Axis 3axis Interface USB port Limit switch Yes Tool auto-checking Spindle Motor: 1500W Weigh 87 Machine Dimensions： 1130X890X610mm Rack material： 6061-T5 extruded aluminum alloy Engraving area： 790X580mm Z-Axis Stroke： 105mm, Engraving depth depends on the length of the tool edge Acceptable material thickness ≤ 120mm Rail type： Chromeplate shaft + Linear Bearings, Surface hardening 61HRC Type of screw： Ball screw (XZ axis 1605, Y axis 2005) Spindle motor： air cooled spindle , 1500W , 0-24000r/min Collet type： ER11,1/8"(3.175mm and 6mm) Collet Stepper motor and drive： 60BYGH86-4.0A, Each axis independently driven Maximum operating speed： 4000mm/min (Engraving speed: 300-3000mm/min) Repeat positioning Accuracy： 0.03mm Software Compatability： Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam) Command code： G code/.nc/.ncc/.tab/.txt Rotation Axis (4th Axis) Description: Center height: H = 60mm Maximum turning diameter: ≤ 110mm Deceleration ratio: 4:1 Stepper motor: NEMA23BHH76-3A Weight: 5KG Packing list: 1× Engraving machine 1× Control box 1× Power cable 1× USB port cable 1× Tool package 4× clamps 1× tool auto-checking instrument 1× water pump 1× CD of manual and software MACH3 (if not get, may be lost in customs, please contact us)
